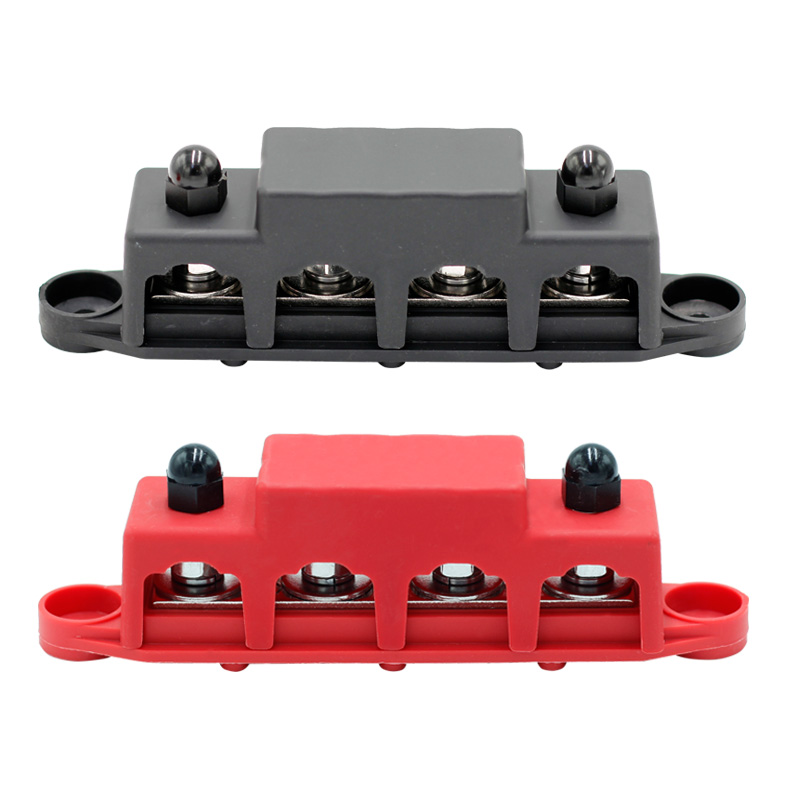

250A 12V Bus Bar 3/8" Power Distribution Block 4 Studs Junction Block Automotive Marine Battery Busbar Terminal Block with Cover
250A 12V Bus Bar 3/8" Power Distribution Block 4 Studs Junction Block Automotive Marine Battery Busbar Terminal Block with Cover1
250A 12V Bus Bar 3/8" Power Distribution Block 4 Studs Junction Block Automotive Marine Battery Busbar Terminal Block with Cover2
250A 12V Bus Bar 3/8" Power Distribution Block 4 Studs Junction Block Automotive Marine Battery Busbar Terminal Block with Cover3

250A 12V Bus Bar 3/8" Power Distribution Block 4 Studs Junction Block Automotive Marine Battery Busbar Terminal Block with Cover

Categories:Bus bar

Feature:
1. Premium Components: Nickel plated brass contact plates for optimal current transfer and weather resistance, nylon base for excellent insulation and strength.
2. Rust Resistant: The power distribution terminal feature stainless steel hardware for extreme conditions, are rust free and can be used in marine environments.
3. Protective Cover: The power distribution block is designed with a removable cover, which is dustproof and waterproof,
effectively protecting the connection.
4. Recommendation: We recommend applying a small amount of nickel anti seize compound to the threads to prevent wear on the power distribution busbar.
5. Wide Application: Stainless steel 3/8in 4 studs make this busbar suitable for various applications such as power systems in cars, RVs, ships, yachts, etc.

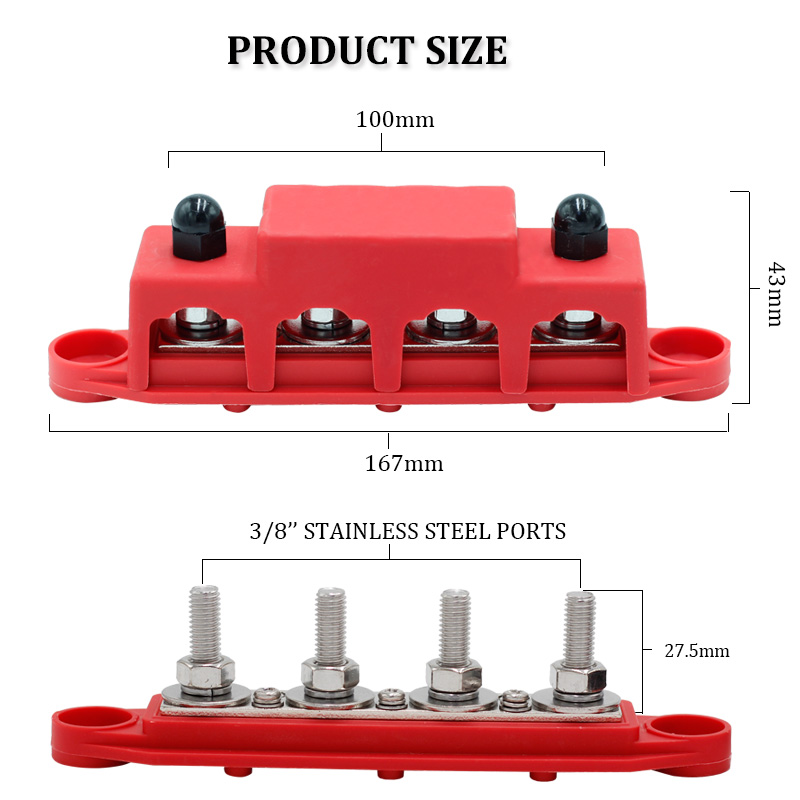

Specification:
Max.Voltage:48V DC
Continuous Rating:250A
Item:4 Stud BusBar Terminal Block
Terminal Srews:M4 (#8) * 3
Max Continuous Amperage:250ADC. Max
Weight:458g
